The safety of pedestrians in the vicinity of vehicles and heavy machinery is of paramount importance, and our FHOSSHalo Exclusion® Zone system stands to prevent infringements, create secure spaces within which pedestrians and machinery can work cohesively, and ultimately – save lives.
By creating a visible barrier of light, the FHOSSHalo Exclusion® system effectively warns pedestrians of potential danger zones, allowing them to stay at a safe distance from moving vehicles and equipment. With experience providing FHOSSHalo Exclusion® for forklifts, tippers, pavers, rollers, lorries, cranes, vans, excavators, dumpers, pedestrian throughfares, galvanizing baths and much more, our team is equipped to ensure life-saving safety for your workforce, no matter the application.
Designed with versatility in mind, the FHOSSHalo Exclusion® Zone System seamlessly integrates into various environments, from construction sites and logistics hubs to quarries and waste plants. Its adaptable nature ensures that it can be effortlessly integrated into your safety-conscious operation.
If you intend to keep vehicles and humans safely segregated on your site, embrace innovation with FHOSSHalo Exclusion® Zone.

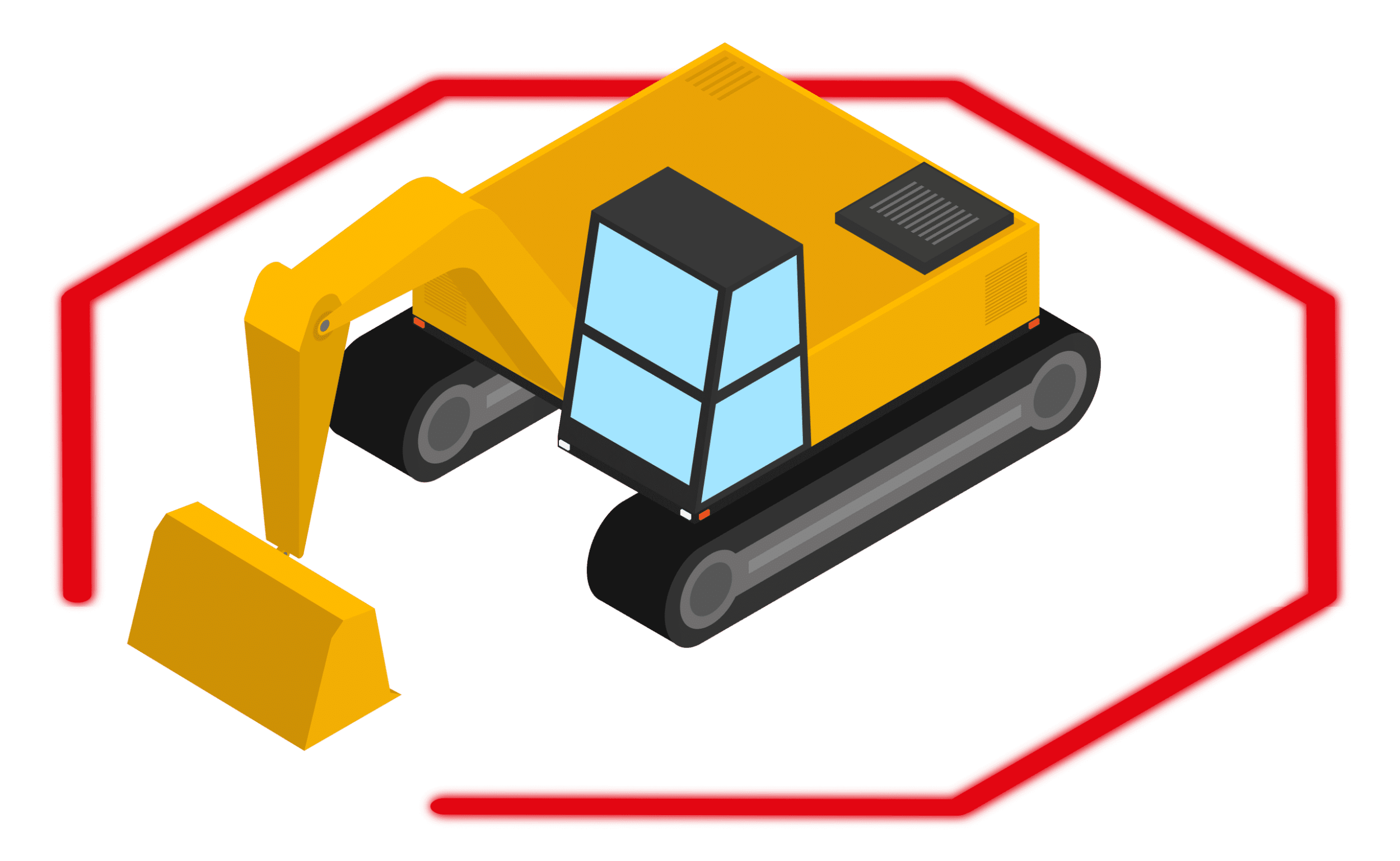

As a market leader of light-based safety systems, we have identified a simple solution to assist with people, vehicle, and plant interface zones. FHOSSHalo Exclusion® Zone lighting uses powerful LED lighting to create a visual deterrent around a vehicle or danger area. The system can be operated manually from a switch, or automatically with light sensors. Straight line or arc shaped units and different colour options enable a variety of configurations that can provide a solution to most types or vehicle or area.
The FHOSS Halo light units are hard wired into your vehicle, draw little power and have a lifespan of 50,000+ hours. The durable cast alloy casing provides a high level of protection to the unit, enabling you to hold the highest standard of safety in inhospitable environments including high traffic areas, ports, quarries and building sites.
FHOSSHalo Exclusion® zone lighting is also used in warehousing and logistics centres where highly visual directional signage is required. Illuminated lighting negates the need for painted lines – reducing maintenance costs and critical downtime as well as providing the flexibility to move / add more zoned areas when needed.
|
FHOSSHalo Exclusion® Zone
|
FHOSS Field Pedestrian Detection
|
FHOSS Field Pedestrian Detection +
|
|
|---|---|---|---|
| 360° Illuminated Exclusion Zone lights draw an area around the vehicle, segregating pedestrians from plant | Our advanced AI pedestrian detection cameras keeps operators and pedestrians informed when an infringement is made with an in-cab monitor and audible alarms. | With a yearly subscription, an online 60-day evidence locker keeps a record of infringements, with telematics data and high-definition video that you can access from your computer or mobile. | |
| Illuminated Exclusion Zone | ✓ | ✓ | ✓ |
| Pedestrian Segregation | ✓ | ✓ | ✓ |
| Low Light Safety | ✓ | ✓ | ✓ |
| Expert Installation | ✓ | ✓ | ✓ |
| Advanced AI Pedestrian Detection | – | ✓ | ✓ |
| 24-Hour Safety | Dependent on light Conditions | ✓ | ✓ |
| Live Camera Feed to Driver | – | ✓ | ✓ |
| Internal & External Infringement Alarm | – | ✓ | ✓ |
| Real-time Tracking | – | ✓ | ✓ |
| Built-in Telematics | – | – | ✓ |
| Cloud Based Event Notifications | – | – | ✓ |
| 60-Day 1080p Online Video Backup | – | – | ✓ |
| LED Power | 6w |
| Voltage Range | 10-80V DC |
| Lumen | 1000LM |
| Beam | Red/Blue/Green Line |
| Size | 60 x 55 x 60 mm |
| Waterproofing | IP67 |
| LED Lifetime | 50000 Hours |
| Housing Material | 100% Diecast Aluminium |
| Lens | PC |
| Operating Temperatue | -45 ~85°C |
| LED Power | 18w |
| Voltage Range | 10-80V DC |
| Lumen | 1500LM |
| Beam | Red/Blue/Green line |
| Size | 155 x 66 x 66 mm |
| Waterproofing | IP68 |
| LED Lifetime | 50000 Hours |
| Housing Material | 100% Diecast Aluminium |
| Lens | PC |
| Operating Temperature | -45 ~85°C |
| LED Power | 15w |
| Voltage Range | 10-80V DC |
| Lumen | 1000LM |
| Beam | Red/Blue/Green line |
| Size | 115 x 74 x 85.9 mm |
| Waterproofing | IP67 |
| LED Lifetime | 30000 Hours |
| Housing Material | 100% Diecast Aluminium |
| Lens | PC |
| Operating Temperature | -45 ~85°C |
| LED Power | 27w |
| Voltage Range | 10-80V DC |
| Lumen | 2500LM |
| Beam | Red/Blue/Green line |
| Size | 147 x 60 x 55 mm |
| Waterproofing | IP67 |
| LED Lifetime | 50000 Hours |
| Housing Material | 100% Diecast Aluminium |
| Lens | PC |
| Operating Temperature | -45 ~85°C |
Our dedicated team of safety specialists are on hand to answer any questions and to offer advice on the best placement and usage of our safety systems. We work closely with our partners and clients to ensure we are up-to-date with the latest methods and working practices which means we are so much more than just another supplier.
Does it work in the day?
Yes and no. It is visible in low light / overcast conditions but not bright light or direct sunlight. Much in the same way that a torch does not work on a bright day
How durable are the lamps?
The light unit is encased in a cast alloy hosing which makes it strong, durable and resistant to minor knocks.
How bright is it?
1000 – 2500 LM
Can it be jet - washed?
Yes but care should be taken to avoid prolonged spray directly to the body of the unit.
Are there other shapes available?
A number of lines can be used together to create a range of shaped exclusion zones.
Does it come in different colours?
Yes, Red, green and blue. Each one is available in short, long and arc variants.
Can it come on automatically or does it need a switch?
It can do both depending on your requirements.
Will it damage my vehicle?
A pre agreed area will need to be drilled to install brackets. High powered magnetic option available.
Will it fit my vehicle?
Most vehicles can be fitted as long as there is a power source to connect to.
Is it waterproof?
Yes, the unit is IP67 rated.
How long does it last?
50,000 hours, outlasting most vehicle leases.
How long is each line?
Short: 3.8m or Long: 4.2m. By placing them together we can draw lines as long as necessary.
Is it road legal?
Red FHOSS HALO systems are perfectly okay to be used at the rear of the vehicle on public highways.
We work closely with our partners and clients to ensure we are up to date with the latest methods and working practices which means we are so much more than just another supplier. Our dedicated team of safety specialists are on hand to answer any questions and to offer advice on the best placement and usage of our safety systems. Once we’ve agreed the right system for your requirements, we will arrange a mutually convenient time and location to fit your equipment. Our highly skilled FHOSS engineers are fully trained and equipped to carry out your install with the minimum of fuss in a professional and timely manner, with as little downtime as possible. We offer both installation and setup of the system itself. In the unlikely event of breakdown, installs and equipment are covered by a 12 month manufacturing defects warranty giving you complete peace of mind. If this does occur, we will endeavour to get an engineer to you as soon as possible ensuring minimum downtime.
We take safety very seriously, and we now have a total of 25 machines – wheeled and tracked – that are equipped with the Halo lighting system says. It is useful for night work, of course, but it also has a value when working indoors on larger industrial building projects. Also when tunnelling or in any area where ambient lighting is poor. We’ve also found the system to be really useful in winter, as it just adds that little bit of extra demarcation around kit before dawn and again, with an early sunset.
FHOSS Halo Exclusion is an innovation that enhances safety for very little additional cost. Those on-site will see the light and not walk across it. It reinforces the thumbs-up view for those working with, and around, machinery.

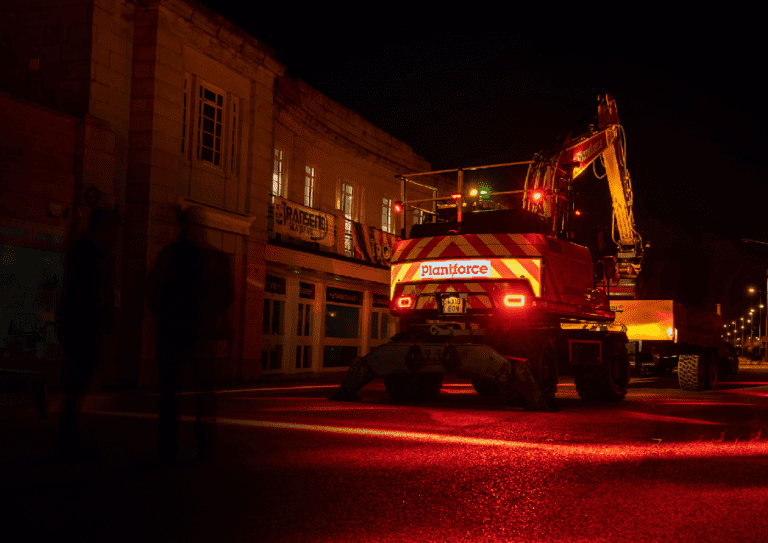

It looks very dramatic in darkness. When plant machinery is working at night, there is very little light to reflect back from standard prismatic material. This is where companies really benefit from FHOSS innovation as it does not require a secondary light source.
Pilot Tool van from Hanson now working in the Bedford area with one of Hanson Central Gangs. Great feedback from client and the public. All new Hanson Contracting vans will come equipped with FHOSS Illuminated vehicle wrap.
This product is amazingly bright at night. Providing extra protection when working not only on the Highway, but on site in general.
Please don’t hesitate to get in contact to see how FHOSS can help improve the safety of you and your workforce. Please contact our sales account managers for pricing options. (Financing options available.)
